We make every effort to accurately record its apron weights. Because each category is averaged, the numbers we provide in the weight chart are subject to a +/- 15% weight variance. Minor length or width adjustments, including heavier fabrics, are not differentiated and instead, averaged together. Please consider this when referencing the weight chart.
Average Wraparound 0.50mm LE Apron Weights
1
/
of
8
AP-WABR Wrap Around Back Relief Apron, Front 0.50mm LE & Back 0.25mm LE
AP-WABR Wrap Around Back Relief Apron, Front 0.50mm LE & Back 0.25mm LE
Regular price
$1,200.00
Regular price
Sale price
$1,200.00
Unit price
/
per
Loading Your Options
See Apron Size Chart in Description Box
See Apron Size Chart in Description Box
See Apron Size Chart in Description Box
( Refer to Apron Measurement Instructions in Description Box )
( Refer to Apron Measurement Instructions in Description Box )
See Fabric Color Swatches in Description Box
Customizations Total: $0.00
Couldn't load pickup availability

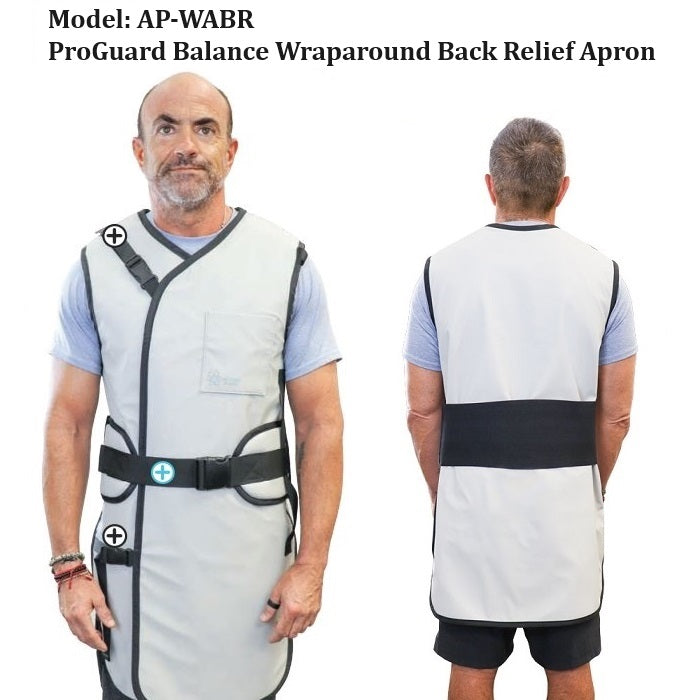

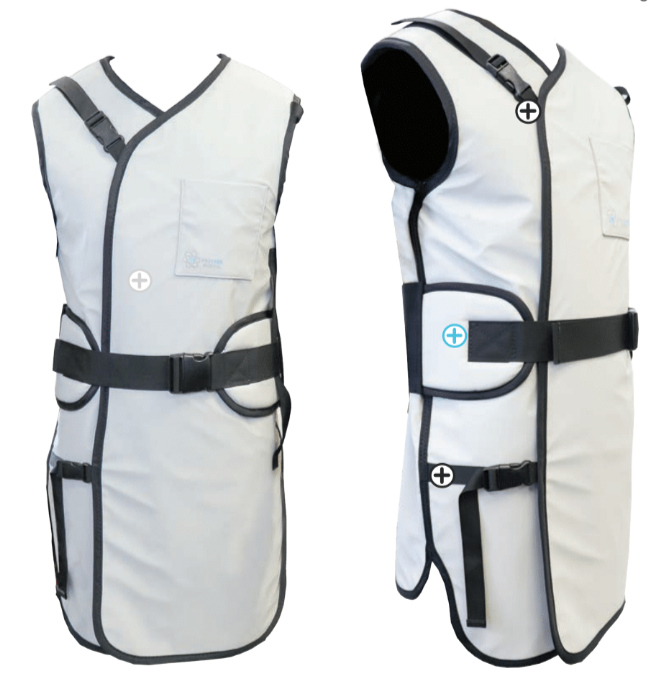

Wrap Around Back Relief Apron
Model: AP-WABR
Catalog Download >> ProGuard Aprons
Offering full protection, this back relieving design transfers the weight from your shoulders to your hips with the aid of a 6” lumbar support belt. The Wrap Around Back Relief apron features velcro and buckle closures, a velcro break-away side seam for freedom of movement, and .50mm LE when the overlapping panels are engaged. The wraparound full overlap apron eliminates redundant fabric and lead; reducing unneccessary weight by 10% and increasing comfort.
- CE Marked
- Made in USA
- Protection Coverage: Front & Back
- Closure: Velcro
- Pocket Included
Included Features
- Adjustable Buckle Set - Adjustable buckle closures ensure a tight fitting apron.

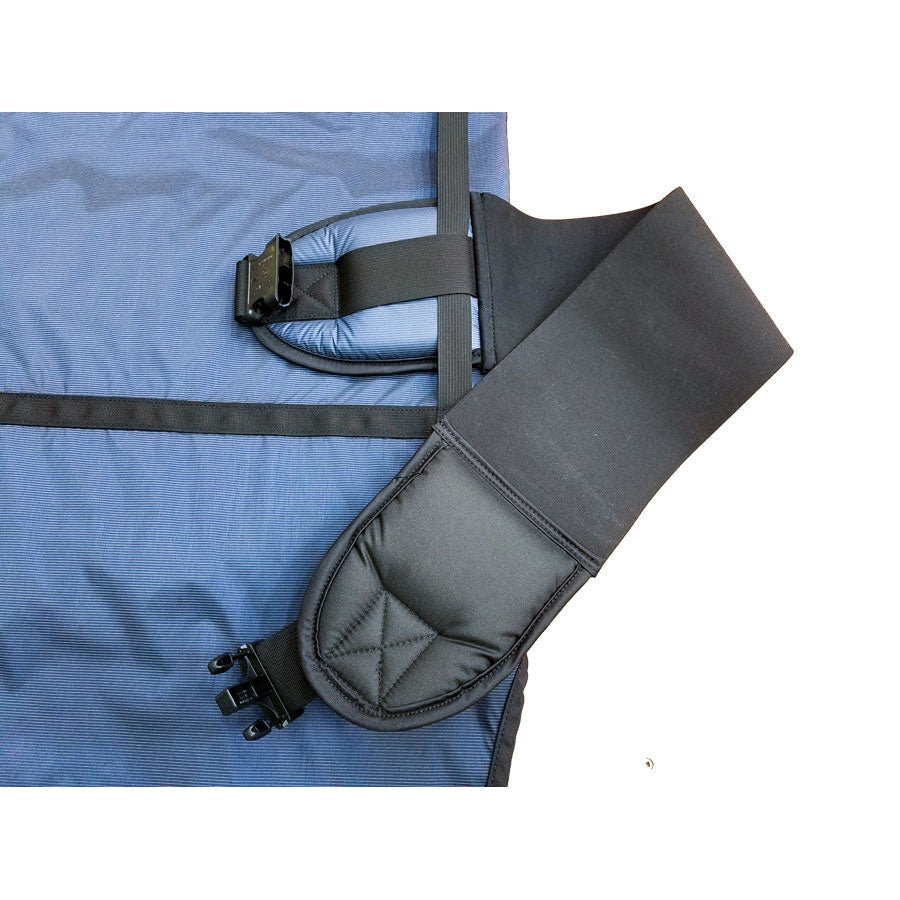

- Back Relief Belt - The back relief belt provides extra lumbar support and features high quality components so that it does not lose elasticity. The belt also features a non-slip adjustable buckle to ensure a secure fit.
- Full Overlap - Two 0.25mm Pb (standard) panels make up 0.50mm Pb at overlap.
Sizing & Measurement Details
- Size: XS to 2XL
- Apron Measurements & Sizing Charts
Lead Protection Info
- Core Material: Prolite Lead-Free / Premier Lead-Free / Nano Lead-Free
- Front Core Thickness: 0.50mm Lead Equivalence
- Back Core Thickness: 0.25mm Lead Equivalence
Prolite Lead-Free
One of our most popular core materials, Prolite is a light weight and flexible x-ray protective material composed of cerium and/or trade secret rare earths. It is roughly 16% lighter than standard lead. Prolite is certified to both ASTM and IEC standards.
It is environmentally safe and can be disposed of through normal waste procedures and is excellent for long procedures.
- Composition: Cerium and/or Rare earths, Plasticizers
-
Certifications: ASTM & IEC Certified
Prolite Lead-Free Attenuation Results
|
Lead Equivalence |
70kV |
90kV |
110kV |
130kV |
|
0.25mm |
94.2% |
87.9% |
82.4% |
77.7% |
|
0.35mm |
97.9% |
93.9% |
89.9% |
86.3% |
|
0.50mm |
99.0% |
96.3% |
93.5% |
90.5% |
Premier Lead-Free
Premier is our best selling core material and one of the lightest weight x-ray protective materials on the market. It is made from bismuth and/or trade secret rare earths, achieving 23% weight reduction when compared to standard lead products. Premier is ASTM certified.
It is environmentally safe and can be disposed of through normal waste procedures and is ideal for long procedures.
- Composition: Bismuth and/or Rare earths, Plasticizers
- Certifications: ASTM Certified
Premier Lead-Free Attenuation Results
|
Lead Equivalence |
80kV |
90kV |
100kV |
|
0.25mm |
93.2% |
90.7% |
88.2% |
|
0.50mm |
98.5% |
97.3% |
96.1% |
Nano Lead-Free
Weighing in at 33% lighter than lead, Nano is takes the stage as our lightest core material. Made from Cerium, Antimony and rare earths, Nano is highly flexible and is a fantastic option for those needing a ultra lightweight option. It is certified to ASTM testing standards.
It is environmentally safe and can be disposed of through normal waste procedures and is ideal for long procedures.
- Composition: Cerium, Antimony, Rare earths, Plasticizers
- Certifications: ASTM Certified
Nano Lead-Free Attenuation Results
|
Lead Equivalence |
80kV |
90kV |
100kV |
|
0.25mm |
95.4% |
93.9% |
91.4% |
|
0.50mm |
98% |
97% |
95.1% |
Weight
|
Size |
Nano |
Premier |
Prolite |
Standard Lead |
|
XS |
3.38 kg | 4.40 kg | 4.69 kg |
5.64 kg |
|
Small |
4.44 kg | 5.90 kg | 5.42 kg | 6.53 kg |
|
Medium |
4.91 kg | 5.64 kg | 6.00 kg | 7.23 kg |
|
Large |
5.40 kg | 6.20 kg | 6.60 kg | 7.95 kg |
|
XL |
5.89 kg | 6.75 kg | 7.18 kg | 8.65 kg |
|
2XL |
6.79 kg | 7.78 kg | 8.28 kg | 9.98 kg |
Fabric & Color Options
- Exterior Material Options: Nylon, Ripstop, Classic Print, Wipe-Away Vinyl and Anti-Microbial Poly.
- Color customization is applicable for Exterior Fabric and Binding only

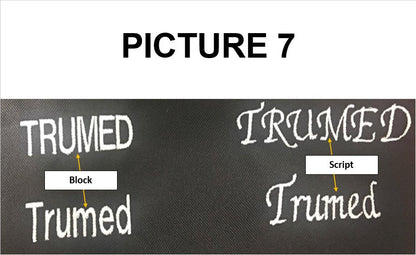

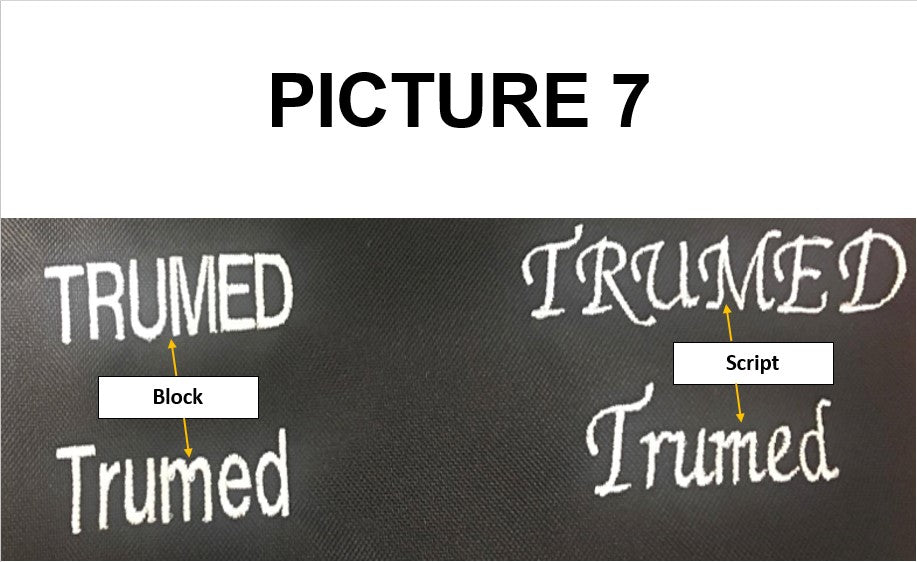

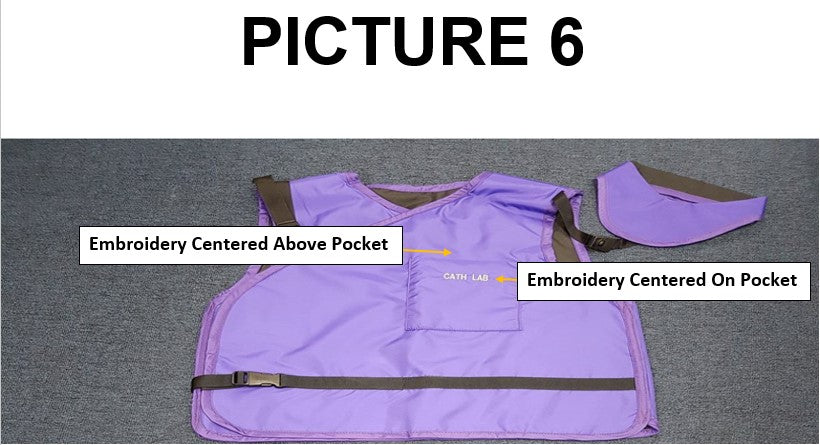

- Embroidery Customization Available
Warranty
We proudly stand behind our radiation safety aprons with a full guarantee on defects related to workmanship and materials for one year following the date of purchase. This warranty does not cover damage caused by abuse, neglect or use in non-medical/intended uses.
Shipping
- Time To Ship: 6 Weeks
- Shipping Weight: 8.5 kg
- Packaging Dimension: 79cm x 31cm x 6cm
